Bryant Furnace Installation in North Rigby, Idaho

Big Foot Heating & Cooling completed a Bryant furnace installation in North Rigby, Idaho, replacing an aging gas furnace with a Bryant Preferred 96.5% AFUE two-stage furnace. The project also included a new central air conditioning system and several improvements to the home’s existing HVAC components.

The original system had a 100,000 BTU gas furnace rated at 90% efficiency. During the initial evaluation, technicians assessed the utility closet, ductwork, return-air pathways, filtration, drainage, and electrical requirements to plan the equipment replacement.

Along with the new furnace and air conditioning equipment, the project included five bedroom pass-through return-air grilles, a dedicated filter rack, updated condensate piping, and the necessary connections for the outdoor AC unit.

HVAC System Replacement with a Bryant Furnace and Central Air Conditioning

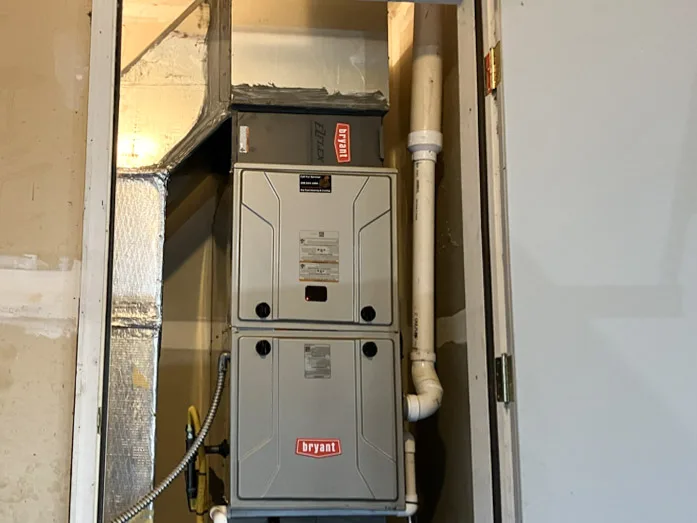

This Bryant furnace installation in North Rigby, Idaho, included replacing the home’s existing heating equipment with a new 100,000 BTU Bryant Preferred gas furnace rated at 96.5% AFUE. The two-stage furnace features variable-speed air delivery and was installed alongside a new evaporator coil and outdoor central air conditioning unit to provide heating and cooling from one integrated system.

The main part of this HVAC system replacement was the installation of a Bryant Preferred 96.5% AFUE two-stage gas furnace. The new 100,000 BTU furnace features variable-speed air delivery and replaced the home’s older 90% efficiency furnace.

A Bryant evaporator coil and outdoor central air conditioning unit were also installed as part of the project, giving the home an updated heating and cooling setup.

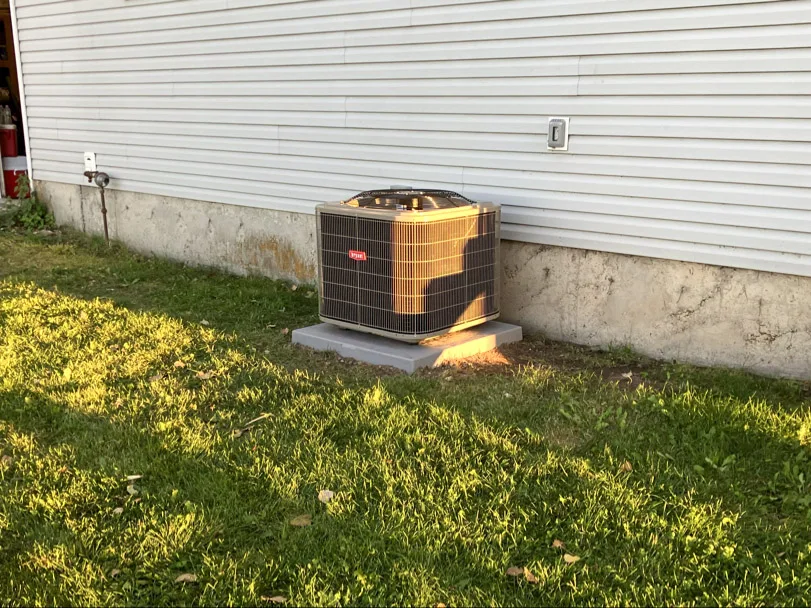

The new outdoor condenser was positioned beside the garage, with the refrigerant lines routed through the garage to connect with the indoor equipment. The installation was configured around the home’s existing layout rather than requiring major structural changes to the utility area.

Return-Air and Ductwork Improvements

An important part of this Bryant furnace installation was improving airflow throughout the home. The existing layout had seven lower-level supply registers and five upstairs, but the bedrooms lacked dedicated return-air access. To address this, the team installed five pass-through return-air grilles to help air circulate between the bedrooms and the rest of the home.

Along with the Bryant furnace installation, the team improved several supporting components of the home’s HVAC system. Five bedroom pass-through return-air grilles were installed, and a dedicated filter rack replaced the previous setup that used a one-inch filter taped into place.

As part of the HVAC system replacement, technicians also evaluated how air moved through the home. The house had seven supply registers on the lower level and five upstairs, but the bedrooms did not have dedicated return-air access.

When bedroom doors remain closed, limited return-air pathways can affect how air circulates within a room. To address this portion of the system, five pass-through return-air grilles were installed for the bedrooms.

The project also included adjustments around the new furnace and updated equipment connections. The existing filter setup, which used a one-inch filter that had previously been taped into place, was replaced with a dedicated filter rack.

Having an accessible filter rack provides a more practical setup for routine filter replacement and ongoing HVAC maintenance.

Condensate Drainage and Equipment Connections

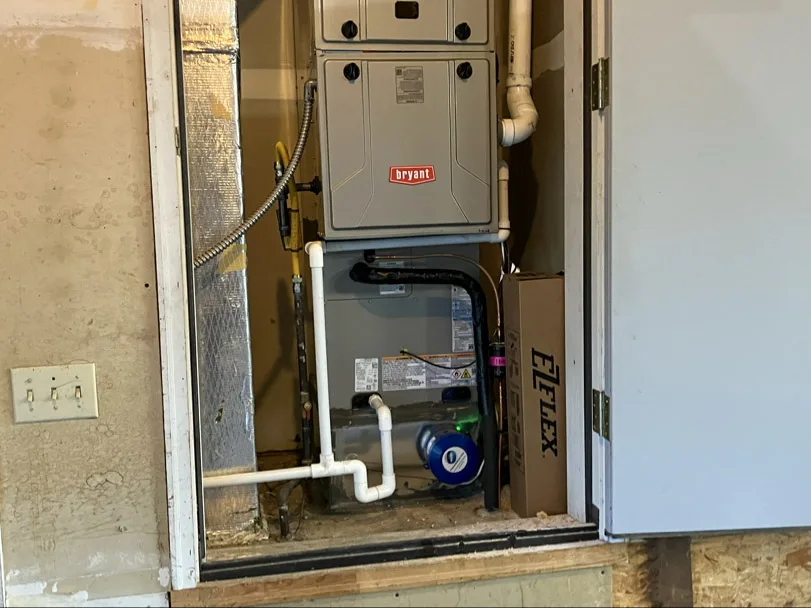

The HVAC system replacement also included an update to the condensate drainage. The home’s previous corrugated condensate piping was replaced with three-quarter-inch PVC piping.

Condensate drainage is an important part of a high-efficiency furnace and central air conditioning system because both heating and cooling equipment can produce moisture that needs to be properly directed away from the equipment.

Technicians also completed the necessary equipment connections and ductwork transitions for the new furnace and cooling system. The goal was to integrate the replacement equipment with the home’s existing infrastructure while updating the components that were part of the project scope.

Electrical Work for the New AC Equipment

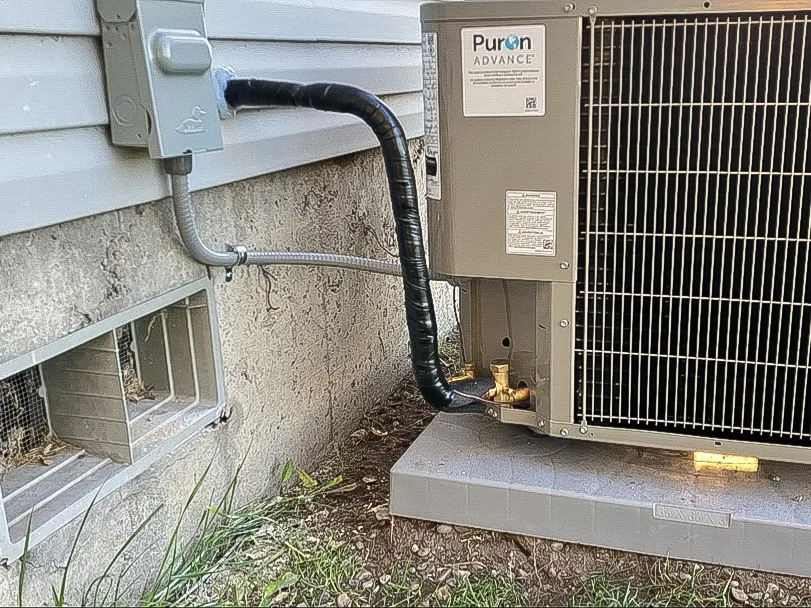

The new central air conditioning system required electrical work to connect the outdoor equipment. Technicians completed the necessary electrical connections as part of the overall HVAC system replacement.

The home’s existing electrical panel was located in a position that allowed the outdoor equipment connections to be incorporated into the installation without requiring major changes to the home’s overall layout.

Coordinating the electrical work with the furnace, air conditioning equipment, ductwork, filtration, and drainage helped bring the different portions of the HVAC upgrade together as one complete project.

A Complete HVAC Upgrade in North Rigby

This Bryant furnace installation involved more than replacing aging equipment. Big Foot Heating & Cooling upgraded the home’s heating and cooling system while addressing practical details such as return-air access, filtration, and condensate drainage. These improvements helped create a more complete installation tailored to the home’s existing layout.

This Bryant furnace installation in North Rigby, Idaho, combined new heating and cooling equipment with practical improvements to filtration, return-air access, and condensate drainage. Addressing these components together helped integrate the new equipment with the home’s existing layout.

This North Rigby project demonstrates that an HVAC system replacement can involve much more than exchanging an old furnace for a new one.

Along with the Bryant furnace, the project included central air conditioning equipment, a new filter rack, five bedroom pass-through return-air grilles, updated condensate drainage, ductwork adjustments, and the electrical connections required for the outdoor equipment.

The result is an updated heating and cooling system with several supporting components designed around the home’s existing layout.

For homeowners considering a furnace replacement or a larger HVAC upgrade, evaluating the surrounding components can be just as important as selecting the new equipment. Filtration, return-air pathways, drainage, ductwork connections, and electrical requirements all need to be considered during an HVAC system replacement.
